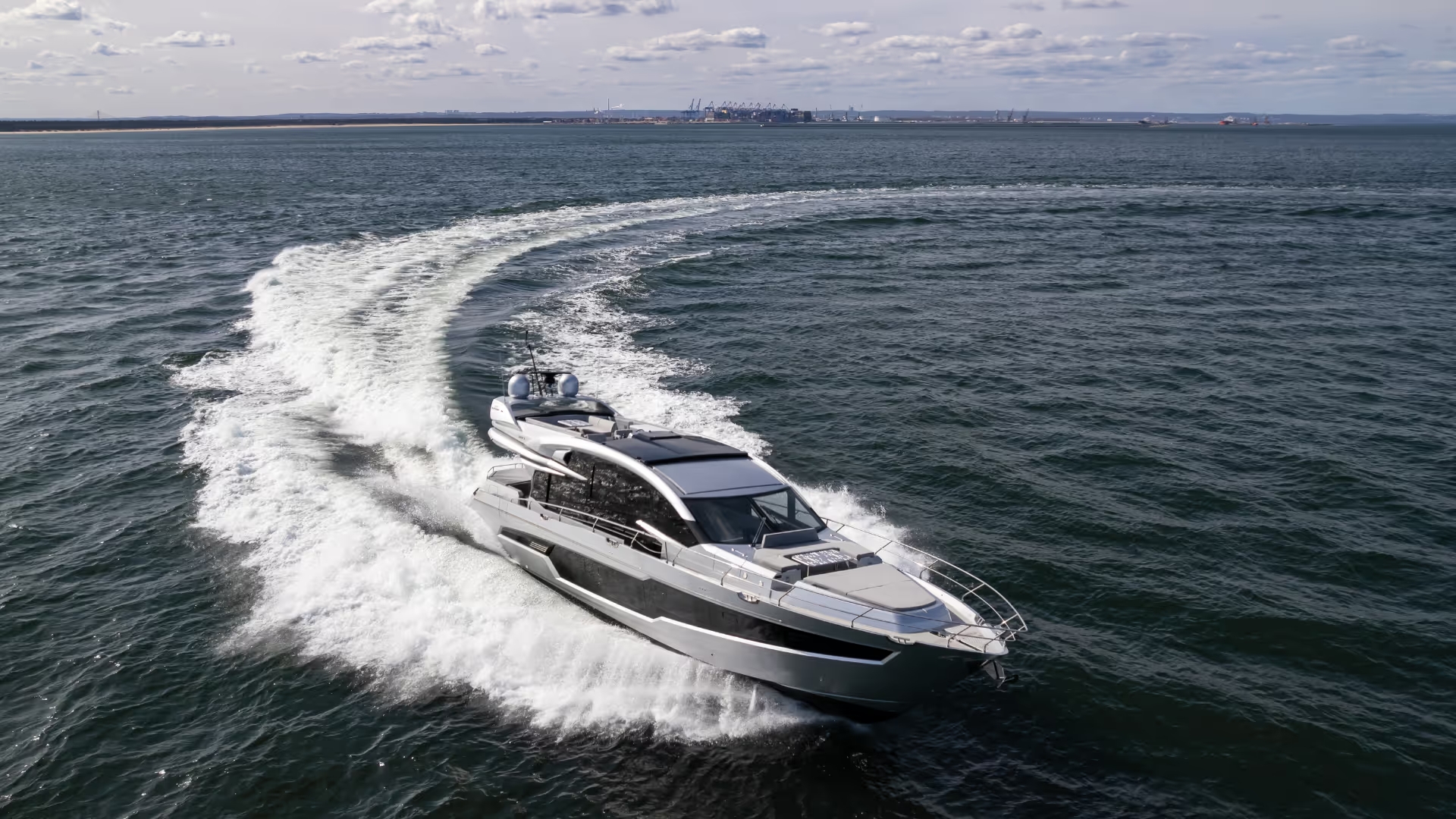

Galeon Yachts 700 SKY
15 photos

Galeon Yachts

700 SKY

2019 – Present

72.84ftLOA
16Guests
5Cabins
30ktsMax Kts

Specifications

Manufacturer Verified

72.8 ft

Length Overall

500 nm

Range

at 10 knots

30 kts

Max Speed

3350 L

Fuel Capacity

5

Cabins

800 L

Fresh Water

Vessel Dimensions

WL72.84 ftLOA17.2 ftBeam4.9 ftDraft

Beam

17.2 ft

Draft

4.9 ft

Units:
Dimensions

Beam

17.2 ft

Draft

4.9 ft

Displacement

44.1 t

Performance

Max Speed

30 kts

Cruising Speed

28 kts

Range

500 nm

Range Note

10 knots

Propulsion

Engine Count

2

Engine Power

2 x 956 kW / 1300 HP

Hull Material

Carbon fiber and fiberglass

Superstructure

GRP

Accommodation

Guests

16

Cabins

5

Crew

1

Crew Cabins

3

Heads

3 guest, 1 crew

Tanks

Fuel Capacity

3350 L

Fresh Water

800 L

Black Water

300 L

Design Credits

Exterior Designer

Tony Castro Yacht Design

Interior Designer

Galeon

Naval Architect

Tony Castro Yacht Design

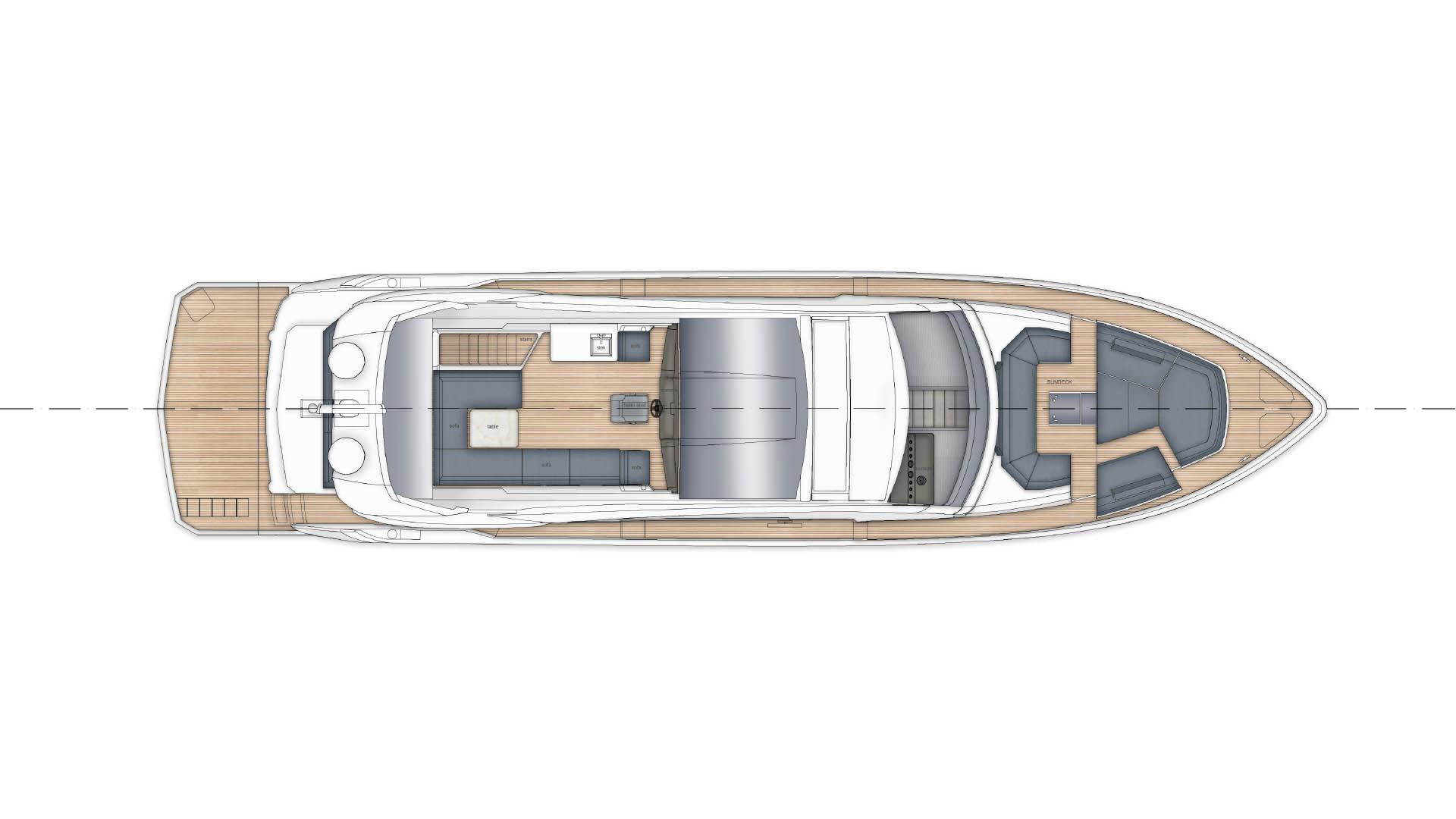

Deck Plans & Layouts

1×
Deck Plan

Deck Plan

Propulsion & Systems

MAN V8-1200

MAN V8-1200

Twin engine configuration

SHAFTDIESELIMO Tier II
Displacement
11.96
Cylinders
8
Volvo Penta D13-1000

Volvo Penta D13-1000

Twin engine configuration

SHAFTDIESELIMO Tier II, EU Stage II, EPA Tier 3, China I, China II
Displacement
12.8
Cylinders
6

Navigation & Electronics

Raymarine Raymarine Autopilot control units×2Raymarine Raymarine VHF Radio with Automatic Identification System (AIS) receiverFiberglass arch with stainless steel radar mastHatch, skydeck accessCompass

Safety

Automatic/manual fire extinguishing system

Entertainment & AV

Stereo Plus 12V AM/FM with bluetooth modular unit speakers×2Audio system Fusion on bowElectric sliding TV LED HD 50 inch with Blu-ray playerTV LED 32 inch with Blu-ray playerBose SoundTouch 120 with soundbar and SoundTouch module

Galley & Appliances

Refrigerator under counter with freezer compartmentCooktop 240V two-burner induction with Corian shelfTwin stainless steel sinks with faucet and wood cutting boardExtractor fan overheadExtractor fan×2

Climate Control

Dometic Air Conditioning System Dometic Chilled water (10,000 BTU) 240V

Mechanical & Systems

Bronze Propellers and rudderMAN V8 Turbo×2Stainless steel Propeller shaftsStraight shaft transmission

Other

EmpireBus Digital switching system EmpireBusRaymarine Integrated Management Information System (IMIS) RaymarineSwim platform hydraulic with lifting capacity 1,343 LB (700 KG)Fiberglass sink and retractable faucetFresh water system with air releasesWater inlet stainless steelWater pump 12V with filterBlack Water Waste System with water tank stainless steel with filter water level sensor and air releaseWaste pump electricBatteries engine startingBatteries serviceBattery bow thrusterBattery charger/converter 120/12VSingle 240V/700 AMP shore power inletDC Electrical SystemAC Electrical System 240VElectronic Vessel Control SystemBilge pumps automatic electric×3Bilge pumps high water alarmCommon drain systemSound insulationTrim tab interceptors with indicatorsHydraulic steering system

Generator

Onan 29 kW diesel generator with sound shield

Stabilizer

Gyro Stabilizer

Laundry

Washer and dryer×2

Anchor & Windlass

Electric anchor winch with helm station and foot switchesAnchor rollerGalvanized anchor with galvanized chain

Bow Thruster

Stern thruster
