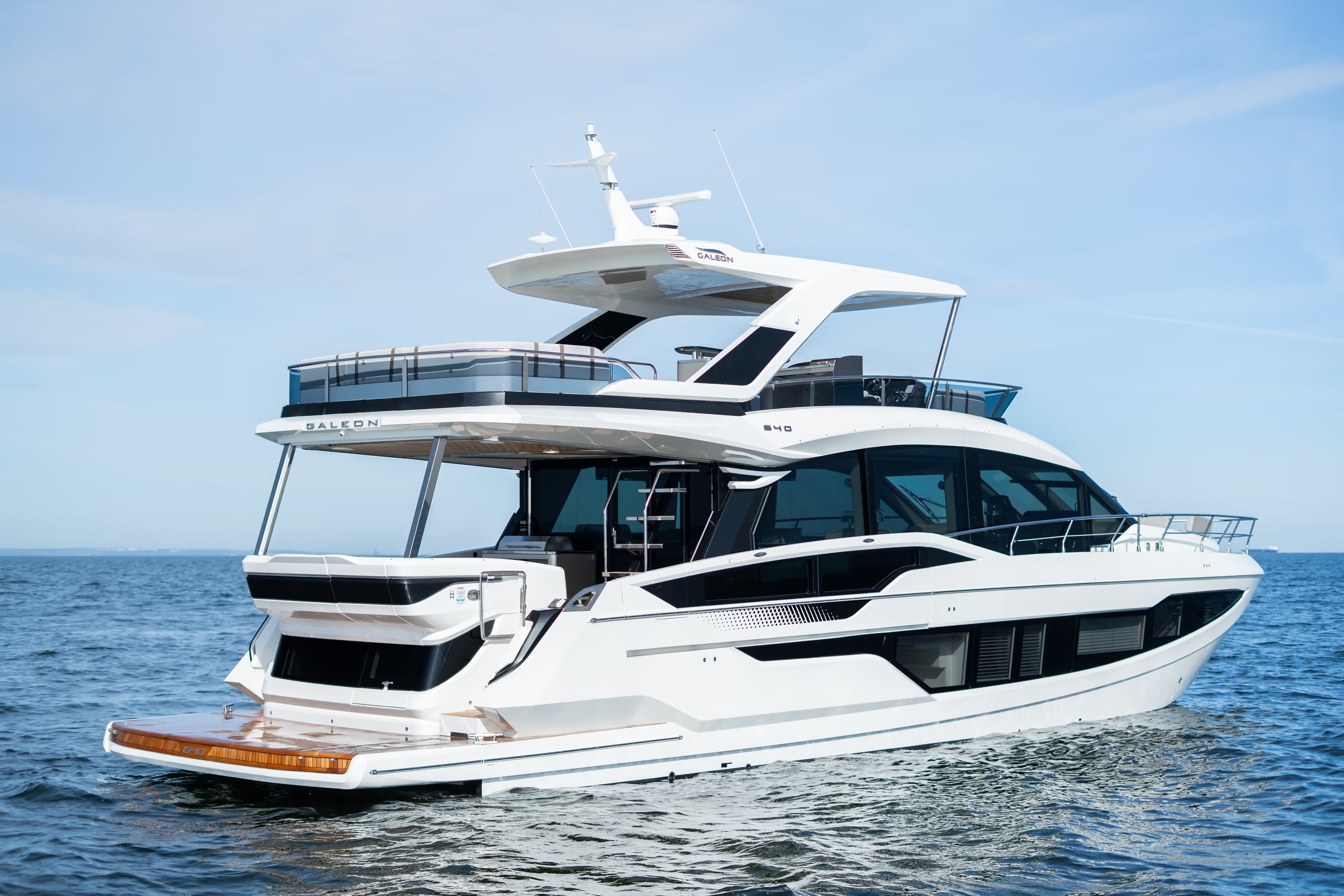

Galeon Yachts 640 FLY
27 photos

Galeon Yachts

640 FLY

2018 – Present

68.33ftLOA
8Guests
4Cabins
30ktsMax Kts

Specifications

Manufacturer Verified

68.3 ft

Length Overall

625 nm

Range

at 10 knots

30 kts

Max Speed

3750 L

Fuel Capacity

4

Cabins

800 L

Fresh Water

Vessel Dimensions

WL68.33 ftLOA16.4 ftBeam3.2 ftDraft

Beam

16.4 ft

Draft

3.2 ft

Units:
Dimensions

Beam

16.4 ft

Draft

3.2 ft

Displacement

41.0 t

Performance

Max Speed

30 kts

Cruising Speed

25 kts

Range

625 nm

Range Note

10 knots

Propulsion

Engine Count

2

Engine Power

2 x 1200 HP

Hull Material

Fiberglass

Superstructure

GRP

Accommodation

Guests

8

Cabins

4

Crew

1

Crew Cabins

1

Heads

3 guest, 1 crew

Tanks

Fuel Capacity

3750 L

Fresh Water

800 L

Black Water

210 L

Design Credits

Exterior Designer

Tony Castro Yacht Design

Interior Designer

Galeon

Naval Architect

Tony Castro Yacht Design

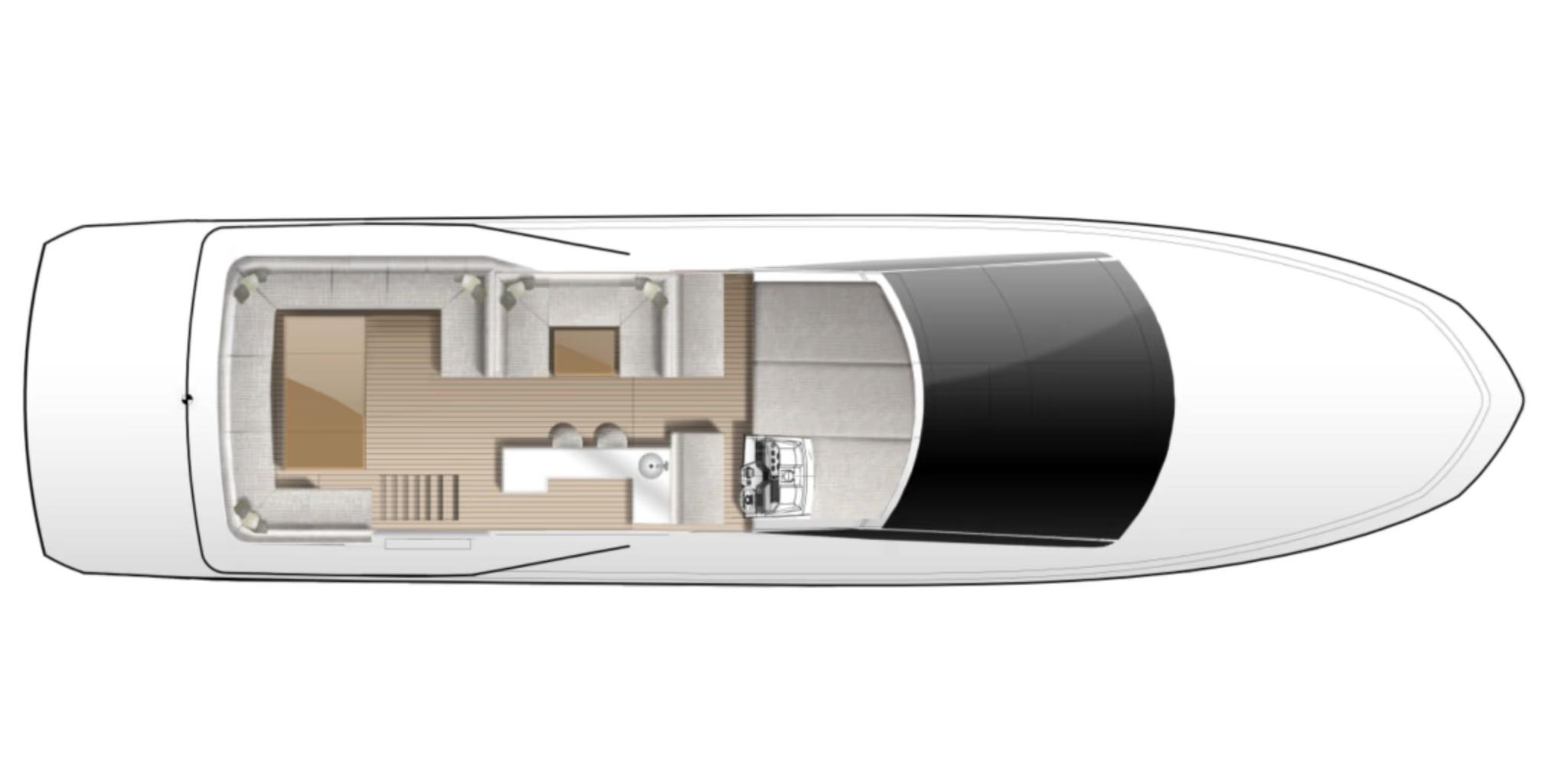

Deck Plans & Layouts

1×
Deck Plan 1

Deck Plan 1

Propulsion & Systems

MAN V8-1200

MAN V8-1200

Twin engine configuration

SHAFTDIESELIMO Tier II
Displacement
11.96
Cylinders
8
Volvo Penta D13-1000

Volvo Penta D13-1000

Twin engine configuration

SHAFTDIESELIMO Tier II, EU Stage II, EPA Tier 3, China I, China II
Displacement
12.8
Cylinders
6

Navigation & Electronics

Raymarine Raymarine Autopilot with control units at main and flybridge helm stationsRaymarine Raymarine VHF radio with Automatic Identification System (AIS) receiver, remote speaker, repeater, and antennaRaymarine Additional Raymarine Chartplotter 1x Axiom 12 RV on flybridgeOpen Array 4xW 48" radarVolvo Volvo 7" digital Electronic Vessel Control (EVC) panelRaymarine Raymarime Chartplotter/FF 2x Axiom XL 16 (2x main station) 1x Axiom 12 Pro-S (1x flybridge)

Safety

Fire system monitorExtractor fans (2)×2Common drain systemBilge pumps, high water alarmAutomatic/manual fire extinguishing system

Entertainment & AV

Bose Sound system, Bose SoundTouch 120 with soundbar and Acoustimass moduleFusion Fusion radio in bow cabin with Fusion bluetooth moduleKVH Satellite TV KVH TrecVision HD7TV LED 43" in master cabinTV LED 50" with Blu-ray player in salonTV 32" with Blu-ray player in Master Cabin

Galley & Appliances

Extractor fan, overheadCooktop, 240V two-burner inductionCooktop with Corian shelfExtractor fans (2)×2MicrowaveRefrigerator under counter with freezer compartment (5.8 ft³/165 L)Large refrigerator in aft salonDishwasher in galleyIce maker in flybridge minibar

Climate Control

Air Conditioning System, Condaria Chilled water (108,000 BTU - 240V)

Other

Fusion radio in bow cabinBreakast bar, starboardTwin stainless steel sinks with faucet and cutting boardLadder, stainless steel

Generator

Onan Onan diesel generator

Laundry

Washer and dryer (separate units)×2

Anchor & Windlass

Electric anchor winch with helm station and foot switches

Bow Thruster

Bow thruster, electric

Equipment data sourced from manufacturer specifications, dealer brochures, and community contributions. Badge colors indicate confidence level.
