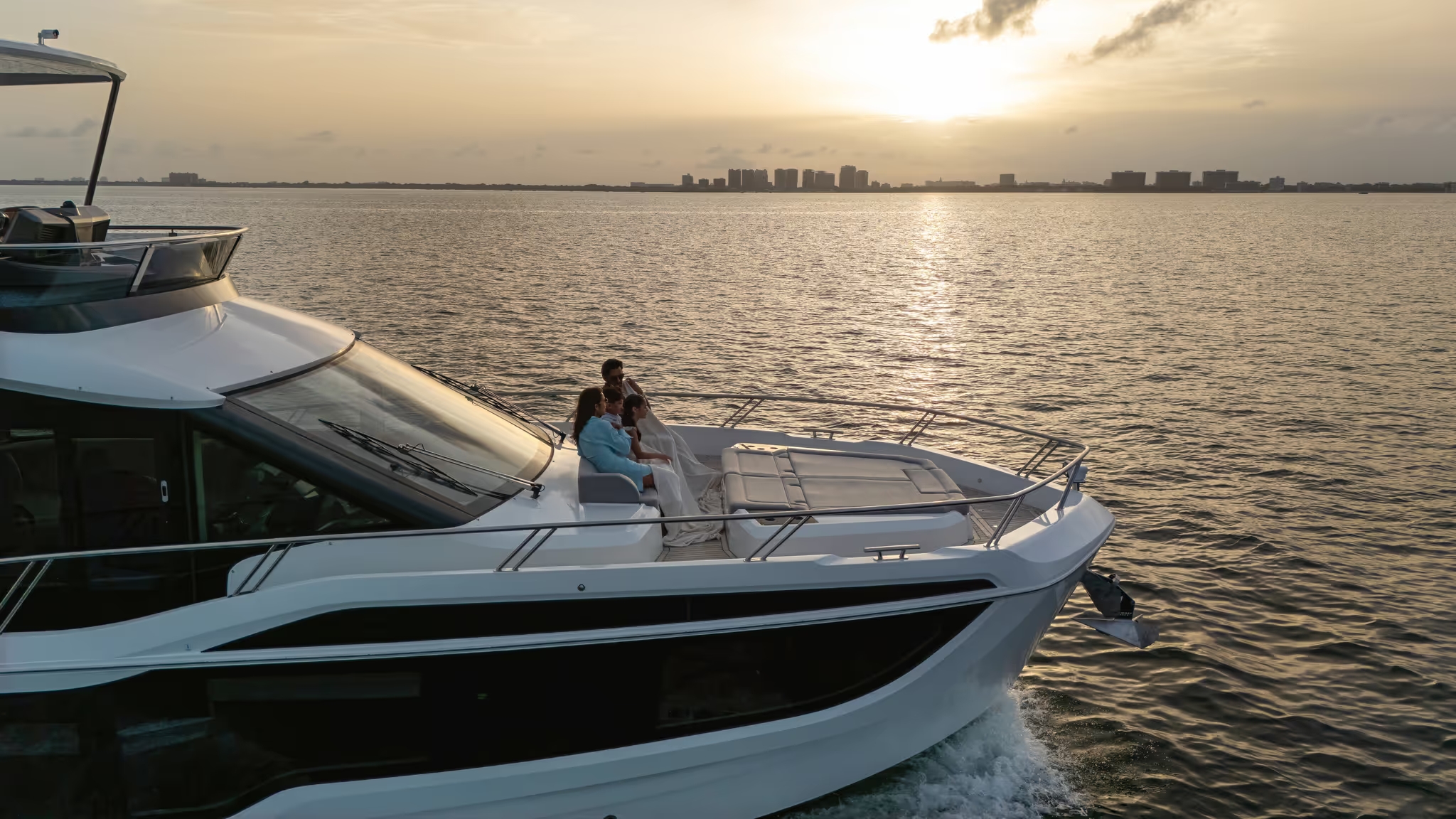

Galeon Yachts 560 FLY
53 photos

Galeon Yachts

560 FLY

2023 – Present

57.55ftLOA
14Guests
4Cabins
31ktsMax Kts

Specifications

Manufacturer Verified

57.6 ft

Length Overall

250 nm

Range

at 25 knots

31 kts

Max Speed

2200 L

Fuel Capacity

4

Cabins

750 L

Fresh Water

Vessel Dimensions

WL57.55 ftLOA15.8 ftBeam3.3 ftDraft

Beam

15.8 ft

Draft

3.3 ft

Units:
Dimensions

Beam

15.8 ft

Draft

3.3 ft

Displacement

33.0 t

Performance

Max Speed

31 kts

Cruising Speed

25 kts

Range

250 nm

Range Note

25 knots

Propulsion

Engine Count

2

Engine Power

Twin Volvo Penta D13-900 (900 hp / 662 kW)

Hull Material

Fiberglass

Superstructure

GRP

Accommodation

Guests

14

Cabins

4

Crew Cabins

1

Heads

2 guest, 1 crew

Tanks

Fuel Capacity

2200 L

Fresh Water

750 L

Black Water

200 L

Design Credits

Exterior Designer

Tony Castro Yacht Design

Interior Designer

Galeon

Naval Architect

Tony Castro Yacht Design

Deck Plans & Layouts

Deck plans for this model are not yet in our database.

Know this vessel? Help us build the knowledge base.

Propulsion & Systems

Volvo Penta D11-670

Volvo Penta D11-670

Twin engine configuration

SHAFTDIESELIMO NOx/EU Stage II/EPA Tier 3
Cylinders
6
Volvo Penta D13-900

Volvo Penta D13-900

Twin engine configuration

SHAFTDIESELIMO Tier II
Displacement
12.8
Cylinders
6

Navigation & Electronics

Galeon Synchronized twin winscreen wipersGaleon Steering wheel, exclusive GaleonTrim tab control panelFire system monitorCompassStation instruments and controlsEngine start panel with electronic key fobsRudder indicatorVolvo Dual lever control, EVCVolvo Volvo Electronic Vessel Control System

Safety

Automatic/manual fire extinguishing systemBilge pumps, automatic electric×3Carbon monoxide detector

Entertainment & AV

Fusion 12V

Other

Condaria Air Conditioning System, Condaria Chilled waterMooring System - Electric anchor winch with helm station and foot switchesBow thruster, electricStern thruster, electricSwim platform, extended with collapsible three-step stainless steel swim ladder

Generator

Onan 17.5 kW

Communication

Ray91 VHF Ray91 AIS (receiver) and VHF antenna with repeater

Anchor & Windlass

Electric anchor winch with helm station and foot switches

Equipment data sourced from manufacturer specifications, dealer brochures, and community contributions. Badge colors indicate confidence level.
