Galeon Yachts 485 HTS
29 photos

Galeon Yachts

485 HTS

2017 – Present

49.2ftLOA
8Guests
3Cabins
24ktsMax Kts

Specifications

Manufacturer Verified

49.2 ft

Length Overall

401 nm

Range

at 6.6 knots

24 kts

Max Speed

2400 L

Fuel Capacity

3

Cabins

800 L

Fresh Water

Vessel Dimensions

WL49.2 ftLOA14.1 ftBeam4.3 ftDraft

Beam

14.1 ft

Draft

4.3 ft

Units:
Dimensions

Beam

14.1 ft

Draft

4.3 ft

Displacement

45.0 t

Performance

Max Speed

24 kts

Cruising Speed

17 kts

Range

401 nm

Range Note

6.6 knots

Propulsion

Engine Count

2

Engine Power

2x 425 HP

Hull Material

GRP

Superstructure

GRP

Accommodation

Guests

8

Cabins

3

Crew

2

Crew Cabins

1

Heads

2 guest, 0 crew

Tanks

Fuel Capacity

2400 L

Fresh Water

800 L

Black Water

140 L

Design Credits

Exterior Designer

Galeon Design

Interior Designer

Galeon Design

Naval Architect

Galeon Design Studio

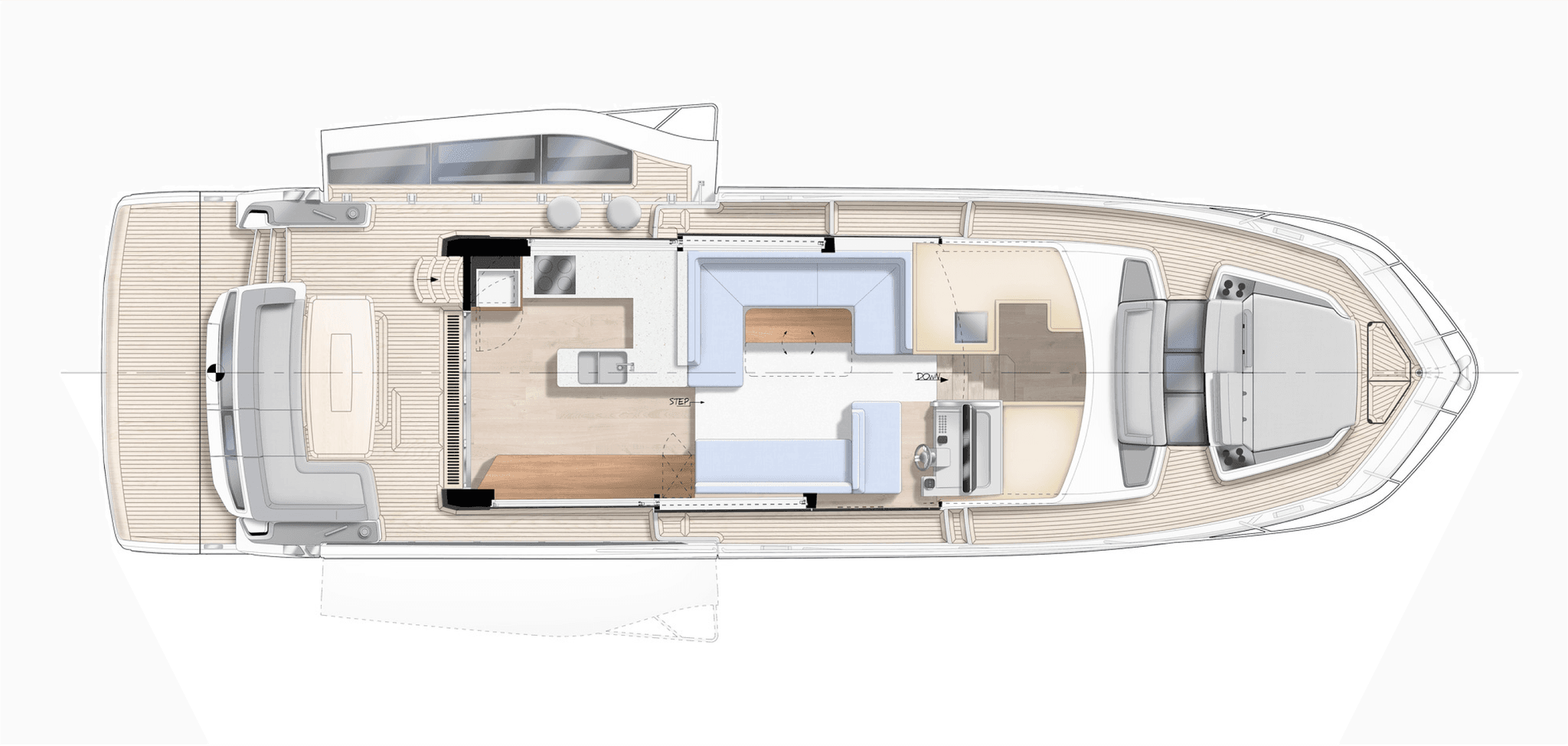

Deck Plans & Layouts

1×
Deck Plan 1

Deck Plan 1

Propulsion & Systems

Volvo Penta IPS600

Volvo Penta IPS600

Twin engine configuration

PODDIESEL-
Displacement
5.5
Cylinders
6

Navigation & Electronics

Raymarine CompassVolvo Penta IPSVolvo Penta Volvo Penta digital Electronic Vessel Control (EVC) PanelRaymarine Raymarine Sonar TransducerRaymarine Raymarine Autopilot with control unitRaymarine Raymarine VHF Radio with Automatic Identification System (AIS)Raymarine Raymarine Digital 4.0 kW Radome RadarRaymarine Raymarine Axiom Chartplotter 9 Fish Finder

Safety

<UNKNOWN> Extractor fans (2) with LED lighting×2<UNKNOWN> Fire System Monitor<UNKNOWN> Automatic / Manual Fire Extinguishing system<UNKNOWN> Bilge pumps automatic electric (2) - engine room and aft owner's cabin×2<UNKNOWN> Bilge pumps high water alarm<UNKNOWN> Common Drain System

Entertainment & AV

Fusion Stereo Fusion 12V AM/FM with bluetooth module and two speakersSamsung TV 32-inch Samsung Smart LEDSamsung TV 24-inch Samsung Smart LED

Galley & Appliances

Corian Corian worktop and finishingsCorian Cooktop 240V two-burner induction<UNKNOWN> Sink Twin Stainless steel with chrome faucet and Corian cover<UNKNOWN> Refrigerator 12V with freezer compartment

Climate Control

Dometic A/C conditioning system Dometic MarineAir (56,000 BTU) - 240V

Mechanical & Systems

Volvo Penta IPS Pod Drive

Other

<UNKNOWN> Carbon Monoxide Detector<UNKNOWN> Water tank stainless steel with air release<UNKNOWN> Water pump automatic with filter<UNKNOWN> Water heater 11 gal / 40 L<UNKNOWN> Waste Pump electric - in engine room<UNKNOWN> Shore power 240V, 50A with 50 ft cord<UNKNOWN> DD Electrical System (12V) with Batteries<UNKNOWN> Battery charger / converter<UNKNOWN> Horns electric<UNKNOWN> Mooring System with reversible electric anchor winch<UNKNOWN> Fiberglass deck hatch to self-draining chain locker<UNKNOWN> Swim platform extended with teak decking and collapsible three-step stainless steel swim ladder and grab handle<UNKNOWN> Windshield Shades front and side<UNKNOWN> Trip Computer with Cablemaster Glendenning 50 ft cord<UNKNOWN> Shade Manual Foredeck Sunpad<UNKNOWN> Swim Platform hydraulic with teak and chocks - 882 lb / 400 kg capacity<UNKNOWN> Refrigerator sunroom (1.0 ft³ / 40 L)<UNKNOWN> Prewired coaxial cable and 110v outlet for TV in cockpit<UNKNOWN> Shade electric cockpit bimini<UNKNOWN> Flooring carpet runners over wooden floor - salon

Generator

Fischer Panda 8 kW diesel with sound shield

Anchor & Windlass

<UNKNOWN> Galvanized anchor 55 lb (25 kg) with 230 Ft (70 m) of 5/16 inch (8 mm) galvanized chain<UNKNOWN> Reversible electric anchor winch

Equipment data sourced from manufacturer specifications, dealer brochures, and community contributions. Badge colors indicate confidence level.
