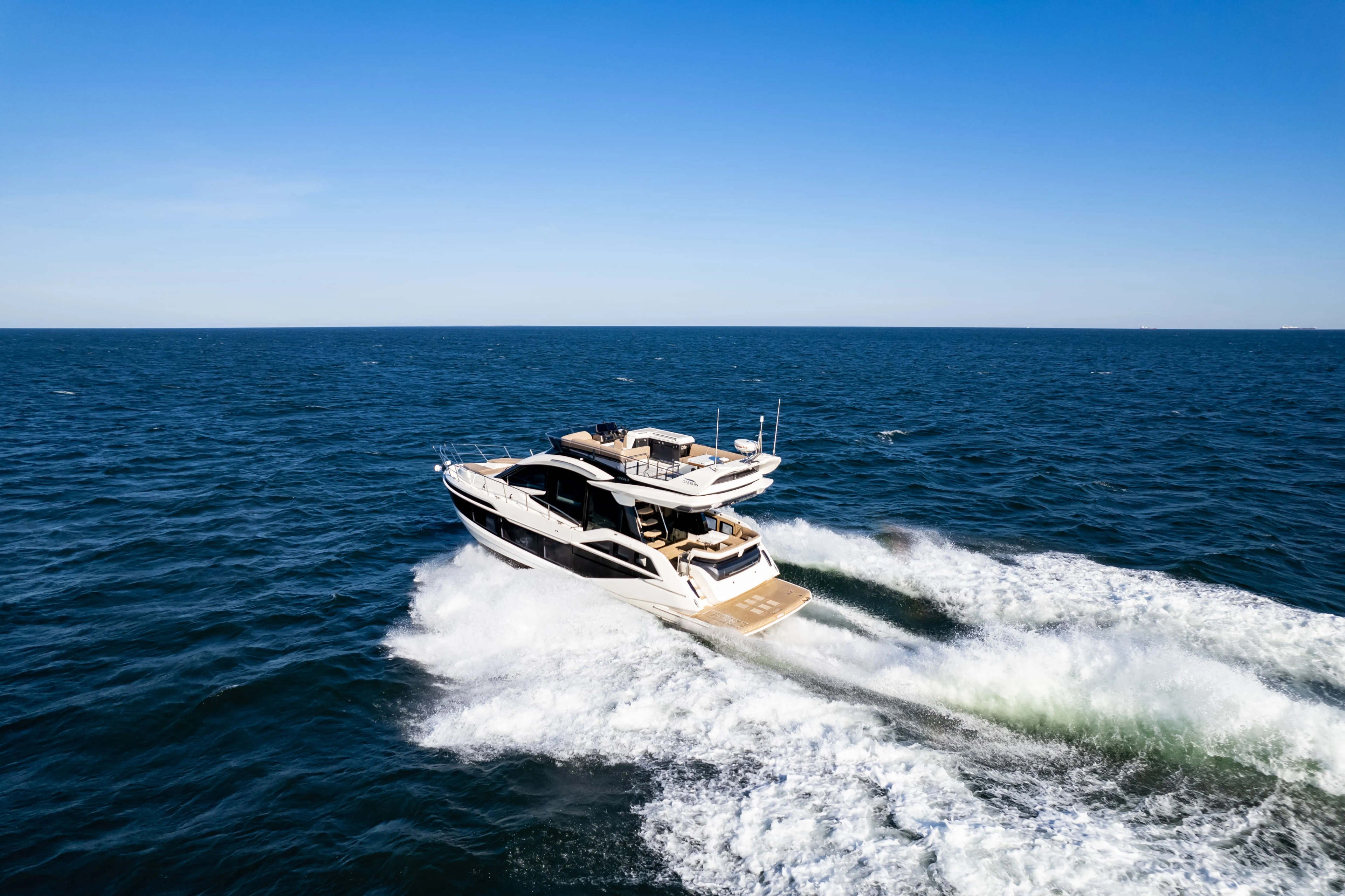

Galeon Yachts 480 FLY
40 photos

Galeon Yachts

480 FLY

2024 – Present

47.17ftLOA
14Guests
3Cabins
28ktsMax Kts

Specifications

Manufacturer Verified

47.2 ft

Length Overall

28 kts

Max Speed

1500 L

Fuel Capacity

3

Cabins

650 L

Fresh Water

Vessel Dimensions

WL47.17 ftLOA19.5 ftBeam4.3 ftDraft

Beam

19.5 ft

Draft

4.3 ft

Units:
Dimensions

Beam

19.5 ft

Draft

4.3 ft

Displacement

19.9 t

Performance

Max Speed

28 kts

Cruising Speed

24 kts

Propulsion

Engine Count

2

Engine Power

Twin Volvo Penta D8-600 (T-600 HP / 448 kW)

Hull Material

Carbon fiber

Superstructure

GRP

Accommodation

Guests

14

Cabins

3

Heads

2 guest, 0 crew

Tanks

Fuel Capacity

1500 L

Fresh Water

650 L

Black Water

200 L

Design Credits

Exterior Designer

Tony Castro Yacht Design

Interior Designer

Tony Castro Yacht Design

Naval Architect

Galeon & Tony Castro Yacht Design

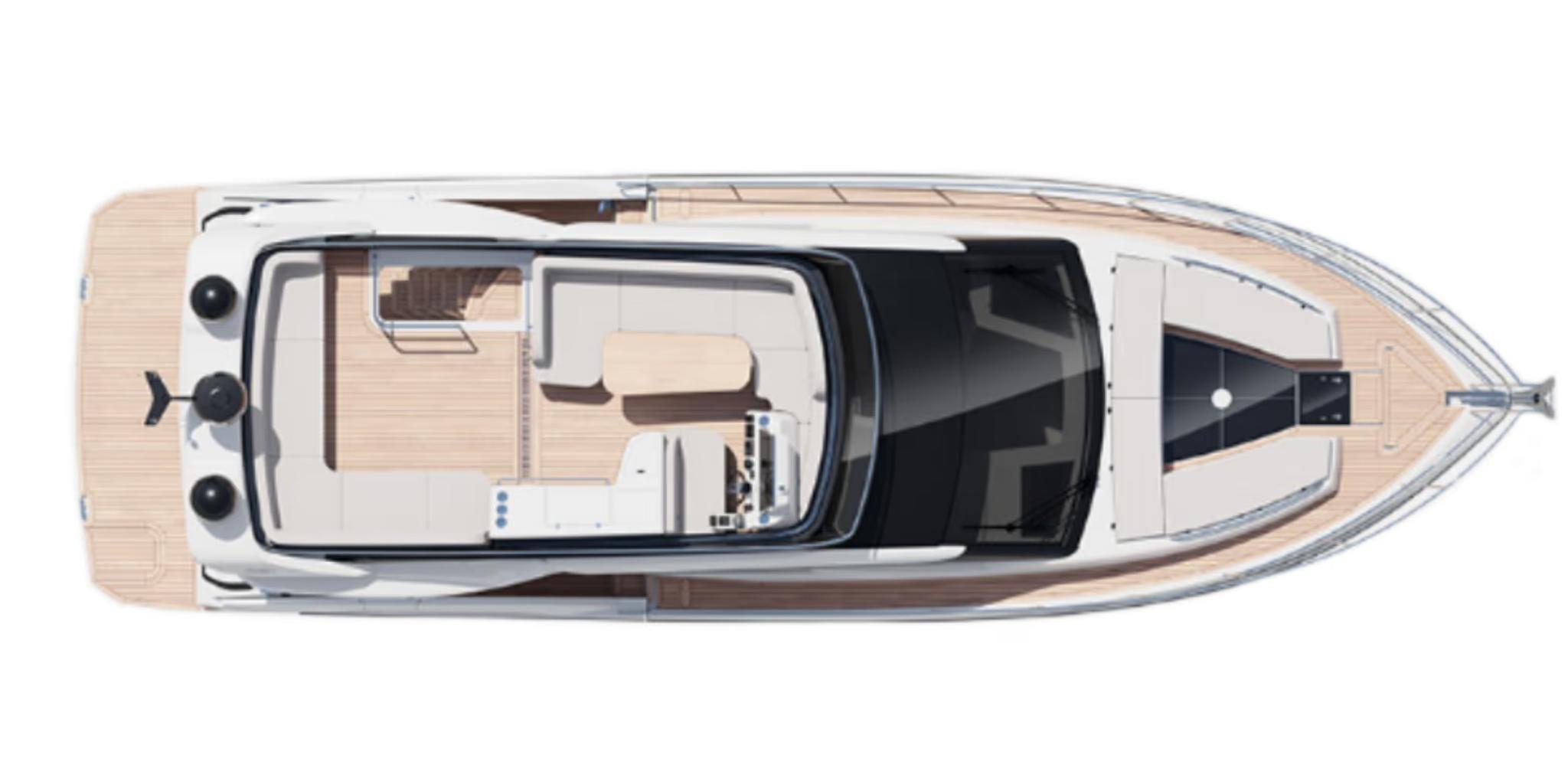

Deck Plans & Layouts

1×
other

other

Propulsion & Systems

Volvo Penta D8-600

Volvo Penta D8-600

Twin engine configuration

SHAFTDIESELIMO Tier II
Displacement
7.7
Cylinders
6

Navigation & Electronics

Raymarine Raymarine VHF Ray91 (Ray90 if AIS 700 ordered)Raymarine Raymarine autopilot Evolution DBW with 2x P70RS control head, EV2 sensor core, EV2 cabling kitRaymarine Raymarine Chartplotter/FF with Axiom XL 16 2x main station and Axiom 12 Pro-S with integrated high chirp sonar CPT-S (tx fly) with CP370 transducer B744V and digital radar RD424 HDAIS and VHF antenna with repeater on flybridgeVolvo Penta Volvo Penta D8-600 Electronic Vessel Control (EVC) System

Safety

Carbon monoxide detector×3Fire system monitorBilge, Automatic/manual fire extinguishing systemBilge pumps, automatic electric×2Common bilge systemExtractor fans×2Bilge pumps, high capacity

Entertainment & AV

Fusion Upgraded Fusion sound system with RA210 and amplifier (2/2/2 speakers in salon/cockpit, JL speakers/flybridge)Electric sliding TV LED 43 inch in salonTV LED 32 inch in master cabinTV LED 24 inch in low cabin

Galley & Appliances

Corian Refrigerator, 240V under-counter with freezer drawer (4.8 ft³/135 L)Wetbar with Fiberglass sink and retractable faucetCooktop, 240V two-burner inductionCorian worktop with serving shelfExtractor fan, overheadMicrowave, 120VRefrigerator (1.7 ft³/49 L)

Climate Control

Dometic Air Conditioning System, Dometic Chilled water (54,000 BTU)

Other

Underwater LED lights×2Fiberglass deck hatch to self-draining chair lockerGym stabilizer (1x Seakeeper 6) with skipper aft cabin and carousel mode packageHydraulic movable bath platform with 1100 LB / 500 KB lifting capacity

Generator

Fischer Panda 12 kW

Laundry

Add freezer drawer aft of standard refrigerator

Anchor & Windlass

Electric anchor winch with helm station

Bow Thruster

Bow thruster, electric

Stern Thruster

Stern thruster, electric

Equipment data sourced from manufacturer specifications, dealer brochures, and community contributions. Badge colors indicate confidence level.
