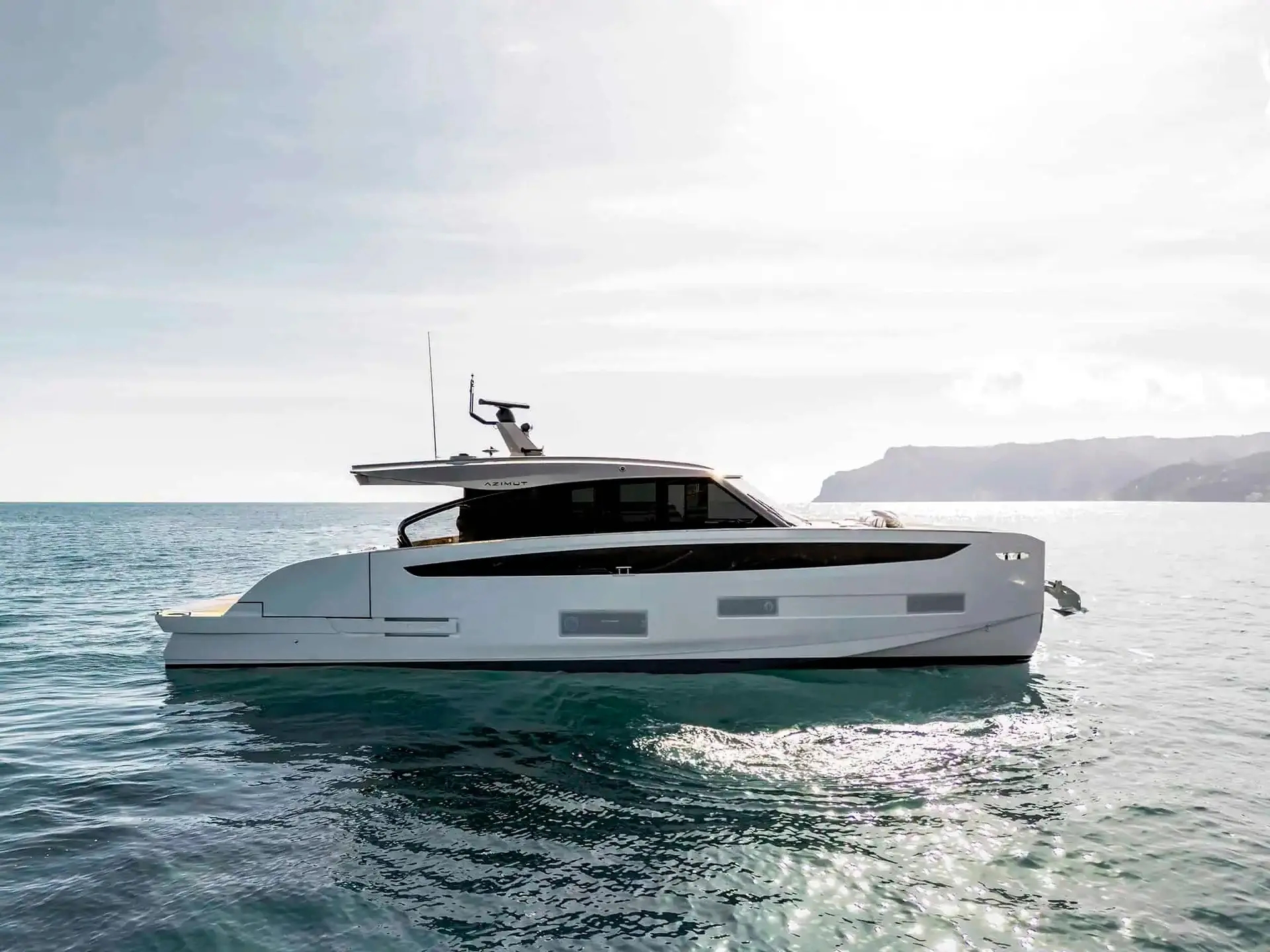

Azimut Seadeck 6
22 photos

Azimut

2023 Azimut Seadeck 6

2023 – Present

56.59ftLOA
6Guests
3Cabins
33ktsMax Kts

Specifications

Verified

56.6 ft

Length Overall

315 nm

Range

at 18.5 knots

33 kts

Max Speed

2400 L

Fuel Capacity

3

Cabins

590 L

Fresh Water

Vessel Dimensions

WL56.59 ftLOA16.6 ftBeam4.4 ftDraft

Beam

16.6 ft

Draft

4.4 ft

Units:
Dimensions

Beam

16.6 ft

Draft

4.4 ft

Displacement

27.6 t

Performance

Max Speed

33 kts

Cruising Speed

24.8 kts

Range

315 nm

Range Note

18.5 knots

Propulsion

Engine Count

3

Engine Power

3× Volvo Penta D6-370 (IPS500), 503 HP

Hull Material

GRP

Superstructure

GRP

Accommodation

Guests

6

Cabins

3

Crew

1

Crew Cabins

1

Heads

2 guest, 1 crew

Tanks

Fuel Capacity

2400 L

Fresh Water

590 L

Design Credits

Exterior Designer

Alberto Mancini Yacht Design

Interior Designer

Matteo Thun & Antonio Rodriguez & Alberto Mancini Yacht Design

Naval Architect

NAMES by Francesco Rogantin & Azimut R&D Dept. & Azimut & Alberto Mancini Yacht Design

Deck Plans & Layouts

1×

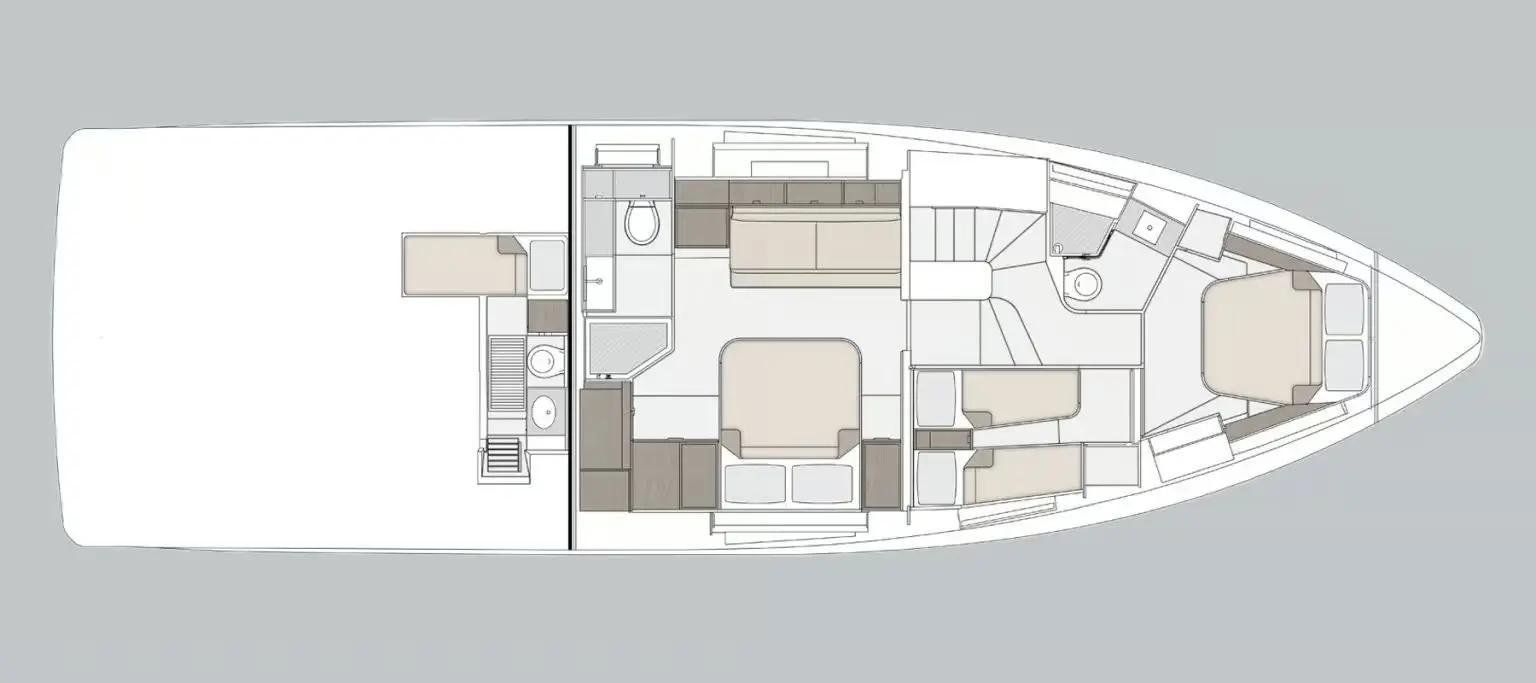

Deck plan

Propulsion & Systems

Mechanical & Systems

Volvo Penta D11-IPS650×3Volvo Penta D6-370 (IPS500)×3
