Azimut
S10
2018 – 2018
Gallery
Specifications
Manufacturer Verified94.3 ft
Length Overall
340 nm
Range
at 30 knots
35 kts
Max Speed
9500 L
Fuel Capacity
4
Cabins
1750 L
Fresh Water
94.3 ft
Length Overall
340 nm
Range
at 30 knots
35 kts
Max Speed
9500 L
Fuel Capacity
4
Cabins
1750 L
Fresh Water
Vessel Dimensions
Beam
20.8 ft
Draft
6.7 ft
Beam
20.8 ft
Draft
6.7 ft
Beam
20.8 ft
Draft
6.7 ft
Displacement
96.9 t
Gross Tonnage
155 GT
Max Speed
35 kts
Cruising Speed
28 kts
Range
340 nm
Range Note
30 knots
Engine Count
2
Engine Power
2 x MTU M96L - 2600 hp
Hull Material
GRP + Carbon Fibre
Superstructure
Carbon Fibre
Guests
8
Cabins
4
Cabin Breakdown
1 x Master 2 x Double 1 x Twin
En-Suite Cabins
Yes
Crew
3
Crew Cabins
2
Heads
5 guest, 2 crew
Fuel Capacity
9500 L
Fresh Water
1750 L
Exterior Designer
Alberto Mancini
Interior Designer
Francesco Guida
Naval Architect
P.L. AUSONIO Naval Architecture & Azimut R&D Dept.

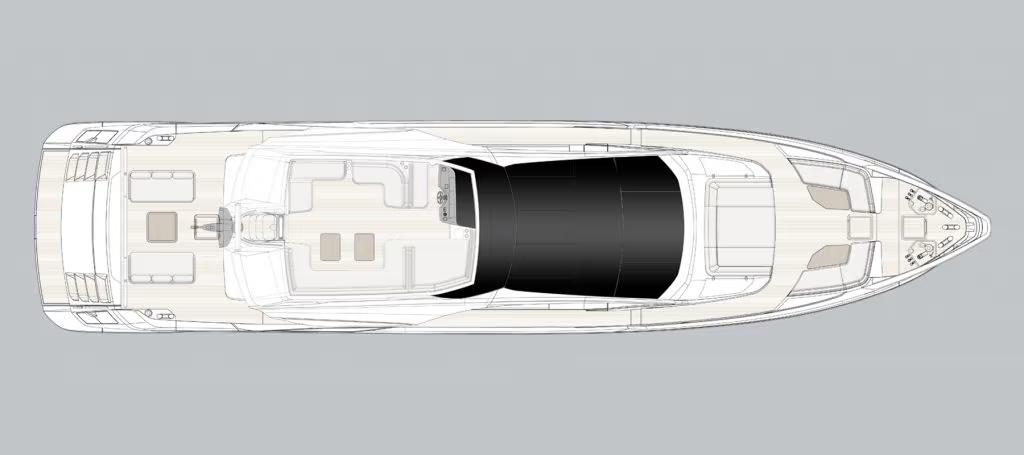

Deck Plans & Layouts
other
Propulsion & Systems
Mechanical & Systems
Equipment data sourced from manufacturer specifications, dealer brochures, and community contributions. Badge colors indicate confidence level.
