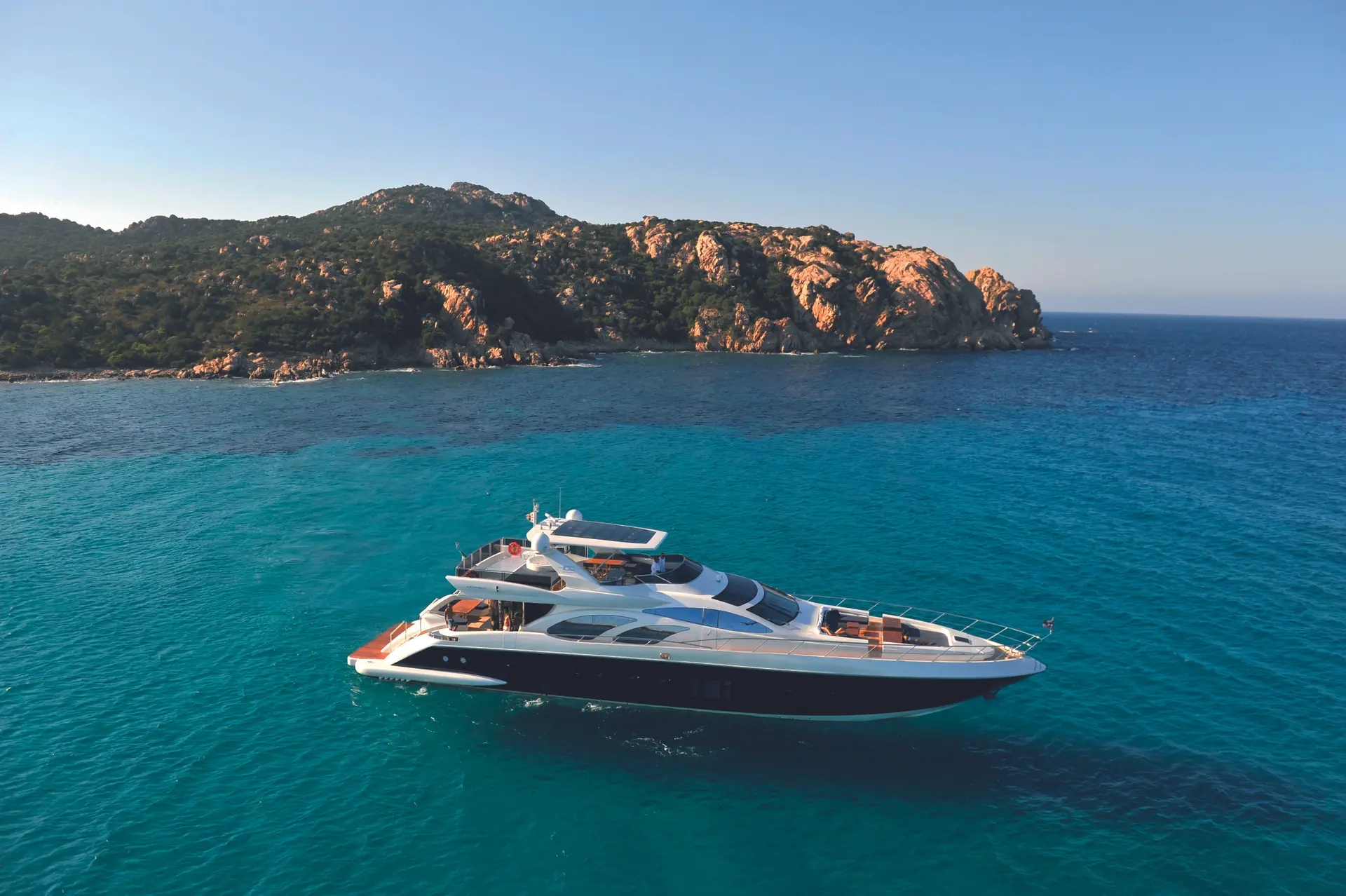

Azimut 100 Leonardo
27 photos

Azimut

2013 Azimut 100 Leonardo

2013 – 2017Discontinued

8Guests
4Cabins
31ktsMax Kts
Model years2013–2017

Specifications

Verified

1300 nm

Range

*Manufacturer estimate

31 kts

Max Speed

10750 L

Fuel Capacity

4

Cabins

1750 L

Fresh Water

Vessel Dimensions

WL22.3 ftBeam6.6 ftDraft

Beam

22.3 ft

Draft

6.6 ft

Units:
Dimensions

Beam

22.3 ft

Draft

6.6 ft

Displacement

105.5 t

Performance

Max Speed

31 kts

Cruising Speed

20.5 kts

Range

1300 nm

Propulsion

Engine Count

2

Engine Power

Twin diesel. Yachtbuyer lists 2 x 2,185 hp (MTU 16V 2000 M92 class, about 1,629 kW each). Boatsonline's 2013 listing instead shows 2 x CAT C32 ACERT V12 at 1,925 mHP (1,415 kW) each. Sources conflict on make and power.

Accommodation

Guests

8

Cabins

4

Crew

3

Tanks

Fuel Capacity

10750 L

Fresh Water

1750 L

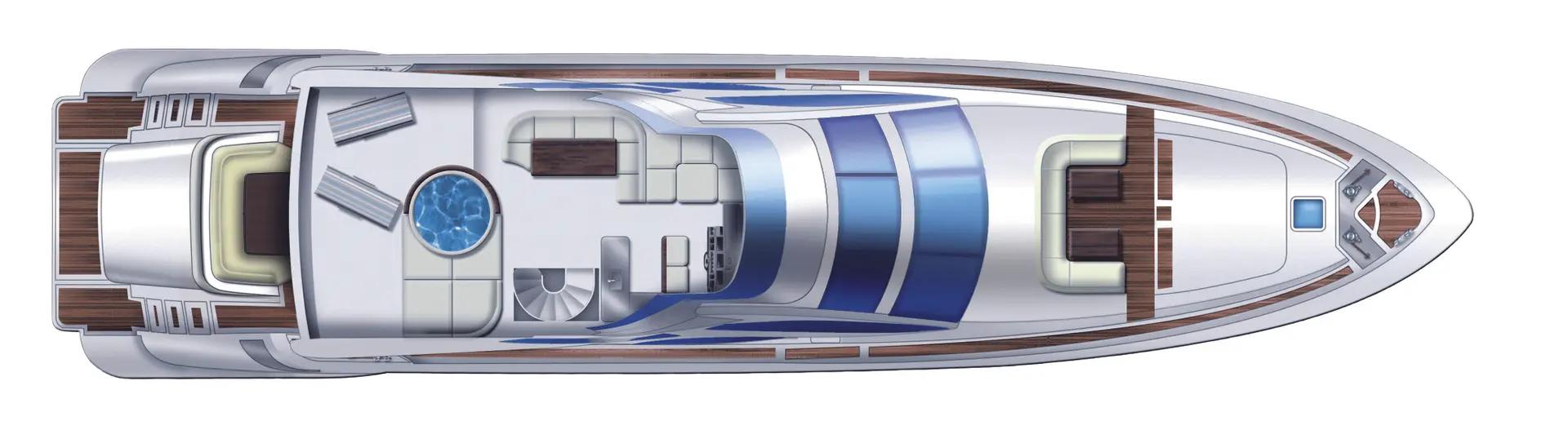

Deck Plans & Layouts

1×
Deck plan

Propulsion & Systems

Engine specifications not available for this model year.

Equipment list not yet available for this model year.
